# BrnMultiSelectListPicker
多选底部弹框 ，适用于从页面底部弹出，存在多选列表的情况。
相似组件有：
[BrnMultiSelectTagsPicker](../widgets/brn-multi-select-tags-picker)从底部弹出的 Tag 样式多选。
[BrnMultiSelectDialog](../widgets/brn-multi-select-dialog) 从页面中部弹出多选弹窗。

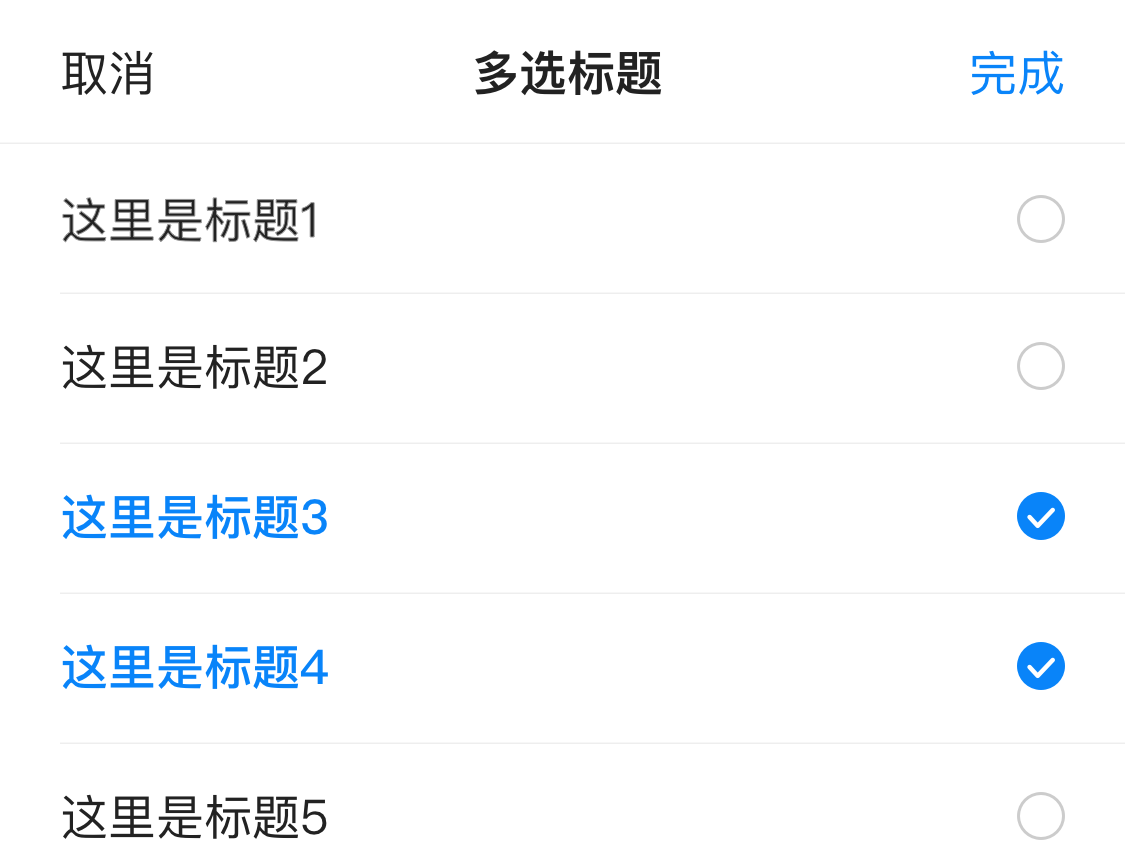

## 一、效果总览
## 二、描述
### 适用场景
1. 多选列表，适用于从底部弹出的情况，属于 Picker
2. 可设置默认选中状态
## 三、构造函数及参数配置
### 构造函数
```dart
BrnMultiSelectListPicker({
Key? key,
this.title,
required this.items,
this.pickerTitleConfig = BrnPickerTitleConfig.Default,
this.onSubmit,
this.onCancel,
this.onItemClick,
}) : super(key: key);
```
### 参数说明
| 参数名 | 参数类型 | 作用 | 是否必填 | 默认值 |
| ----------------- | ------------------------------------------------------------ | ------------------------------------------------------------ | -------- | ---------------------------- |
| items | `List` | 数据源 | 是 | |
| pickerTitleConfig | BrnPickerTitleConfig | 设置 Picker 主题 | 否 | BrnPickerTitleConfig.Default |
| onSubmit | `BrnMultiSelectListPickerSubmit = bool Function(List checkedItems)?` | 点击【完成】时回调给外部选中的数据 | 否 | |
| onItemClick | `BrnMultiSelectListPickerItemClick = void Function(BuildContext context, int index)?` | Item 被点击的回调 | 否 | |
| isDismissible | bool | 是否可电机外部关闭弹窗，true 点击外部关闭弹窗。只在`show`方法里才有 | 否 | true |
| onCancel | VoidCallback? | 点击取消时的回调 | 否 | |
### 其它数据结构
`BrnMultiSelectBottomPickerItem` 多选 Item 数据结构
```dart
class BrnMultiSelectBottomPickerItem{
String code; //选项编号
String content; //选项内容
bool isChecked; //是否选中
MultiSelectBottomPickerItem(this.code, this.content,{ this.isChecked:false});
}
```
`BrnPickerTitleConfig` 数据配置
```dart
BrnPickerTitleConfig({
this.cancel,
this.confirm,
this.title,
this.showTitle: PICKER_SHOW_TITLE_DEFAULT,
this.titleContent,
});
```
## 四、效果及代码展示
### 效果 1: 页面底部 Picker 多选
```dart
List items = [];
items.add(new BrnMultiSelectBottomPickerItem("100", "这里是标题1"));
items.add(new BrnMultiSelectBottomPickerItem("101", "这里是标题2"));
items.add(new BrnMultiSelectBottomPickerItem("102", "这里是标题3", isChecked: true));
items.add(new BrnMultiSelectBottomPickerItem("103", "这里是标题4", isChecked: true));
items.add(new BrnMultiSelectBottomPickerItem("104", "这里是标题5"));
items.add(new BrnMultiSelectBottomPickerItem("104", "这里是标题6"));
BrnMultiSelectListPicker.show(
context,
items: items,
pickerTitleConfig: BrnPickerTitleConfig(titleContent: "多选 Picker"),
onSubmit: (List data) {
var str = "";
data.forEach((item) {
str = str + item.content + " ";
});
BrnToast.show(str, context);
Navigator.of(context).pop();
},
);
```
### 效果 2：页面底部 Picker 多选，限制多选数目，并手动触发 UI 更新
```dart
List items = [];
items.add(new BrnMultiSelectBottomPickerItem("100", "这里是标题1"));
items.add(new BrnMultiSelectBottomPickerItem("101", "这里是标题2"));
items.add(new BrnMultiSelectBottomPickerItem("102", "这里是标题3", isChecked: true));
items.add(new BrnMultiSelectBottomPickerItem("103", "这里是标题4", isChecked: true));
items.add(new BrnMultiSelectBottomPickerItem("104", "这里是标题5"));
items.add(new BrnMultiSelectBottomPickerItem("104", "这里是标题6"));
showModalBottomSheet(
context: context,
backgroundColor: Colors.transparent,
builder: (BuildContext dialogContext) {
return StatefulBuilder(builder: (_, setState) {
return BrnMultiSelectListPicker(
pickerTitleConfig: BrnPickerTitleConfig(titleContent: "多选 Picker"),
items: items,
onItemClick: (_, index) {
if (items.where((element) => element.isChecked).length > 3) {
BrnToast.showAutoGravity("选择数目超过了 3 个", context);
items[index].isChecked = false;
setState(() {});
}
},
onSubmit: (List data) {
var str = "";
data.forEach((item) {
str = str + item.content + " ";
});
BrnToast.show(str, context);
Navigator.of(context).pop();
},
onCancel: () {
BrnToast.show('自定义 cancel 回调', context);
},
);
});
},
);
```
### 效果 3：页面底部 Picker 多选，自定义数据协议
```dart
List items = [];
items.add(new ExpendMultiSelectBottomPickerItem("100", "这里是标题1",attribute1: "第一条自定义参数1"));
items.add(new ExpendMultiSelectBottomPickerItem("101", "这里是标题2",attribute1: "第二条自定义参数2"));
items.add(new ExpendMultiSelectBottomPickerItem("102", "这里是标题3", isChecked: true,attribute1: "第三条自定义参数3"));
items.add(new ExpendMultiSelectBottomPickerItem("103", "这里是标题4", isChecked: true));
items.add(new ExpendMultiSelectBottomPickerItem("104", "这里是标题5"));
items.add(new ExpendMultiSelectBottomPickerItem("104", "这里是标题6"));
BrnMultiSelectListPicker.show(
context,
items: items,
pickerTitleConfig: BrnPickerTitleConfig(titleContent: "多选 Picker"),
onSubmit: (List data) {
var str = "";
data.forEach((item) {
String attribute = item.attribute1 ?? ""; //处理自定义字段
str = str + attribute;
});
BrnToast.show(str, context);
Navigator.of(context).pop();
},
);
```
自定义数据协议（继承基类：BrnMultiSelectBottomPickerItem）
```dart
class ExpendMultiSelectBottomPickerItem extends BrnMultiSelectBottomPickerItem {
final String? attribute1;
final String? attribute2;
final String? attribute3;
String code; //选项编号
String content; //选项内容
bool isChecked; //是否选中
ExpendMultiSelectBottomPickerItem(
this.code,
this.content, {
this.attribute1,
this.attribute2,
this.attribute3,
this.isChecked = false,
}) : super(code, content, isChecked: isChecked);
}
```
